Description

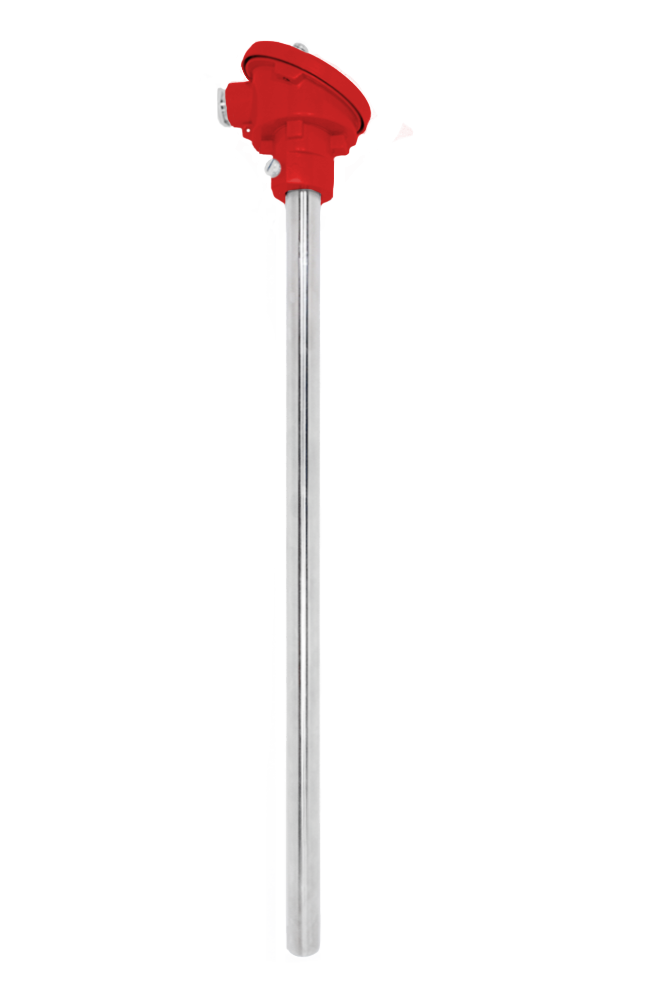

This sensor is suitable for temperature measurements of media with slow temperature changes. Sensor sheath made of heat-resistant and creep-resistant steel enables temperature measurement of e.g. Burned gases and exhaust gases in furnaces.
Files
Manual
General
Connection head
Cooperating devices
Additional accessories
Contact form
Temperatura range
- -40÷700ºC J
- -40÷1200ºC K
- -40÷1200ºC N
Specification
- sensing element: J, K, N thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type AA IP53, - 40÷100ºC
- connection head type DAAW, IP65, -40÷100ºC (for transmitters)
- sheath material: acid-resistant steel 1.4541, 1.4762 and 15Cr25T
- mineral insulated W2 1 or 2 J, K, N Ø6 mm
- control hole for 4 mm for thermocouple
Mounting
Connection head type AA in standard.
Possibility to mount the connection head of a different type.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
