Description

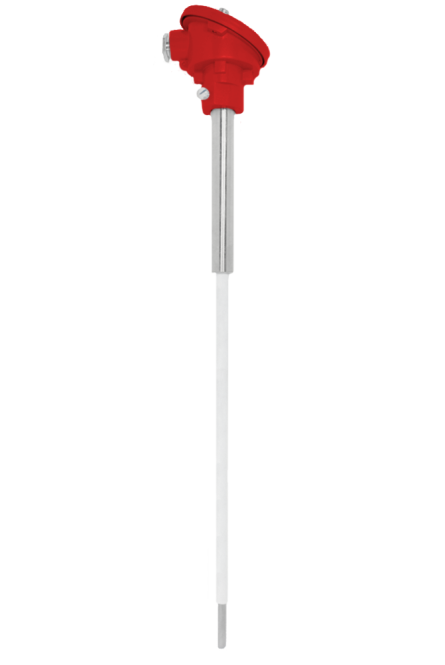

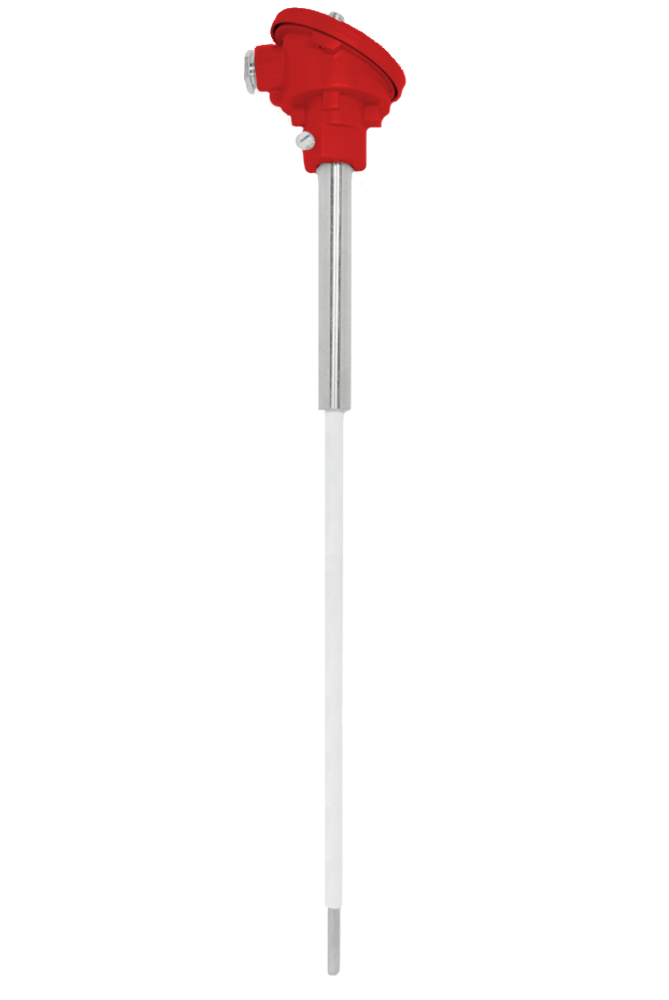

Temperature sensor suitable for measurement of liquid glass. It has ceramic protection tube and dusted platinum layer. This sensor can be equipped with three thermocouplesmeasuring temperature on different depths.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Cooperating devices
Additional accessories
Contact form
Temperatura range
- 0÷1600ºC S, R
- 600÷1700ºC B
Specification
- sensing element: S, R, B thermocouple
- ceramic tube material: corundum 799
- connection head type AA, IP53, -40÷150ºC
- protective coat material Pt, PtRh10, PtRh20
- temperature transmitter can be mounted in a connection head
Mounting
Connection head type AA in standard.
Possibility to mount the connection head of a different type.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
