Description

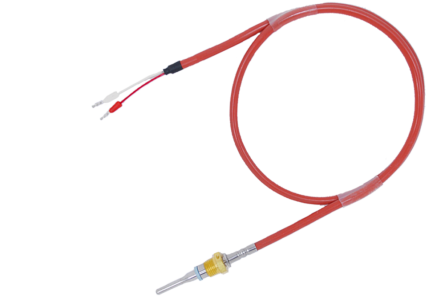

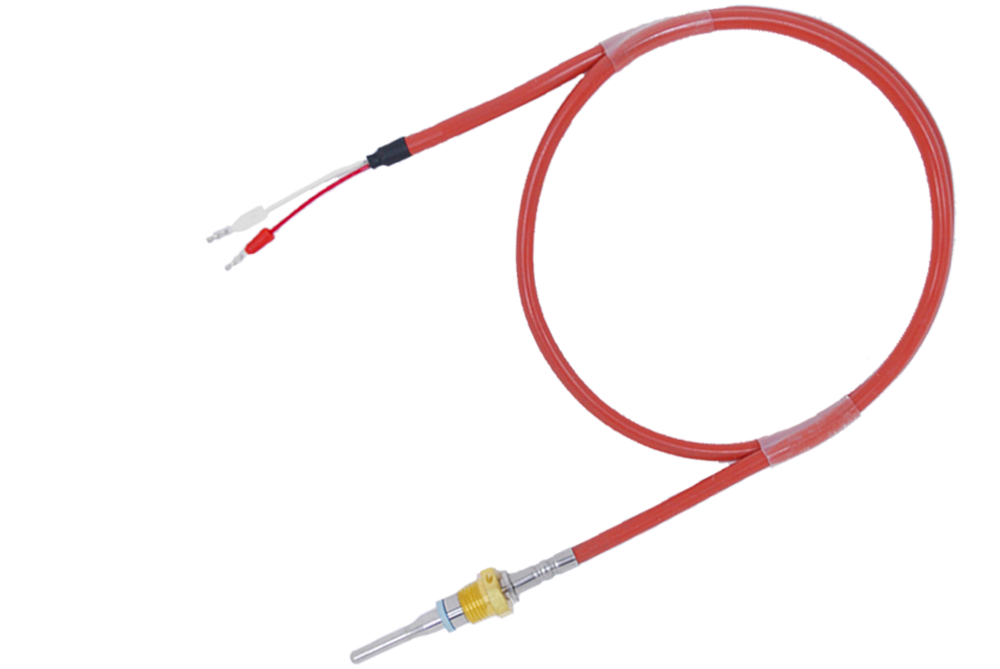

Temperature sensor suitable for measurement of liquid and gaseous media, mainly in systems for energy consumption billing. Sensor pair has PLT 05304 approval issued by Central Office Measures (GUM) for application with heat meters.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]ermsensor.pl

Do you have a question?
General Compatible devices Cables Additional accessories Contact form

Temperatura range

  • -50÷150ºC      RTD
  •  0÷150ºC
  •  3÷150ºC



Specification

  • sensor pair Pt100 and Pt500 with Central Offi ce of Measures approval type PTL 05305
  • stranded Cu wire 2x0,25 mm2 with double silicone insulation
  • mounting in special seats of a valve, tees
  • sheath material:brass

Cooperating devices

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Temperature Indicators Controllers Recorders


For details see:indicators, controllers, “data loggers”

Connecting cables

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.

Silicone insulated wire Fiberglass insulated wire with braid Silicone insulated wire

PVC insulated wire with steel armour Silicone insulated wire with inner shield Teflon insulated wire


For details see: "compensation cables"

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Sheat Compensations cable Plugs and Sockets


For details see: sheath, "plug and sockets", "compensation cables"
