Description

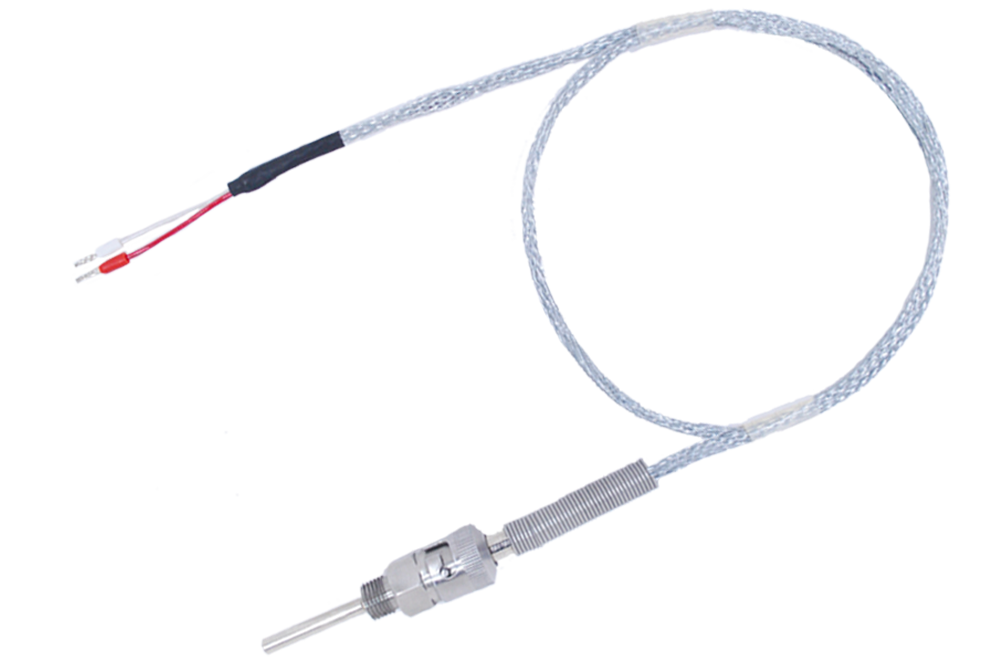

Miniature sensor, with flexible lead wire in armour, suitable for temperature measurement of movable elements, e.g. press moulds, injection moulds etc. It can be applied to measurement of liquids in small tanks and pipelines where atmospheric pressure occurs.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Cooperating devices
Cables
Additional accessories
Contact form
Temperature range
- -50÷250ºC Pt100
- -40÷400ºC K, J
Specification
- insulated hot junction SO
- bayonet mount enables quick mounting and immersion length adjustment (good contact with the seat)
- nickel-plated brass, atmospheric pressure
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.
Some applications require the use of additional accessories suitable for their individual requirements.
