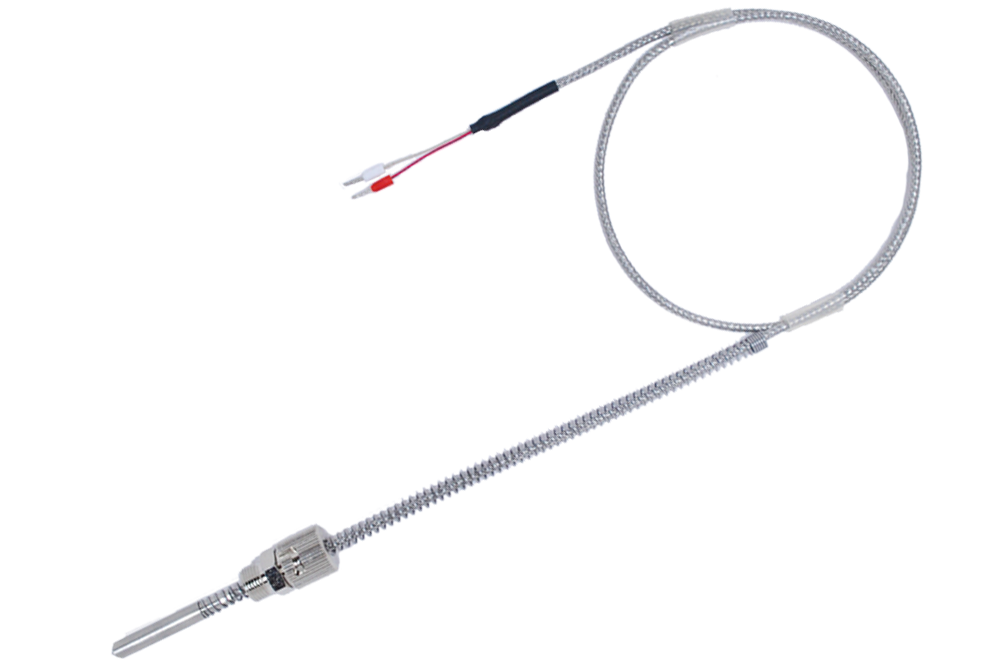

Temperature sensor suitable for measurement of movable or replaceable parts of machines and devices, e.g. bearings or injection moulds. Equipped with bayonet fitting that enables quick and easy installation in the measured element. Furthermore, the sensor has a spring that protects the flexible cable. The cap of a bayonet fitting can be easily moved across the spring enabling the adjustment of sensor immersion length.


Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Cooperating devices Cables Additional accessories Contact form
Temperature range
  • -50÷400ºC        Pt100
  • -40÷400ºC        K, J



  • connector with bayonet mount
  • bayonet mount enables quick mounting and immersion length adjustment (good contact with the seat)
  • material: nickel-plated brass

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.

There is a possibility to use lead wire of different type.

Some applications require the use of additional accessories suitable for their individual requirements.

Contact form

Required field
Required field
Required field
Required field

Generate the code by selecting the parameters below


Sensing element

Tip type

Thermowel lenght

Thermowel diameter

thread dimension

RTD type

Measuring junction type

RTD class

RTD connection

Lead wire length

clear my selections generate code
