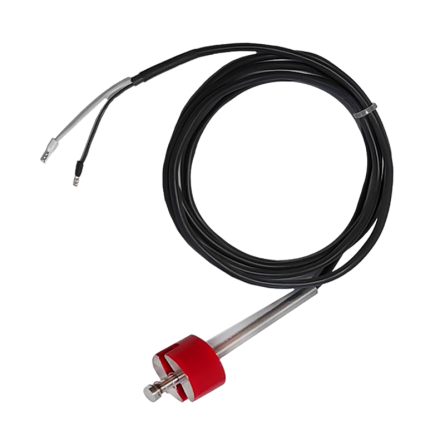

Temperature sensor in Alnico type magnet suitable for measurement of steel surfaces. Magnet application enables quick and easy installation of sensor on steel surface where temperature is to be measured.


Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Compatible devices Cables Additional accessories Contact form

Temperature range

  • (-50 ÷ 400) ºC     Pt100    kl. B
  • (-50 ÷ 250) ºC     Ni100
  • (-40 ÷ 400) ºC     J, K       kl. 2



  • mounting: Alnico
  • max. working temperature: 450 °C (above 180 °C the paint coat is burnt out)
  • sensor sheath mounted with magnet
  • material: stainless steel 1.4541

Contact form

Required field
Required field
Required field
Required field

Generate the code by selecting the parameters below


Sensing element

RTD type

Measuring junction type

RTD class

RTD connection

Lead wire length

clear my selections generate code
