Description

Universal digital display. Power 230 or 24 V. The standard two independent relay NC / NO. Display in housing with protection against reflections black, red numbers. Additional options: extension for a further 2 independent relay outputs NO, the output current of 4-20 mA retransmission, communication module RS-485 MODBUS.

Files

pdf icon Catalogue card zip icon Software

Contact with a consultant

Telephone: 18 330 10 22

Fax: 18 330 10 04

E-mail:

Do you have a question?

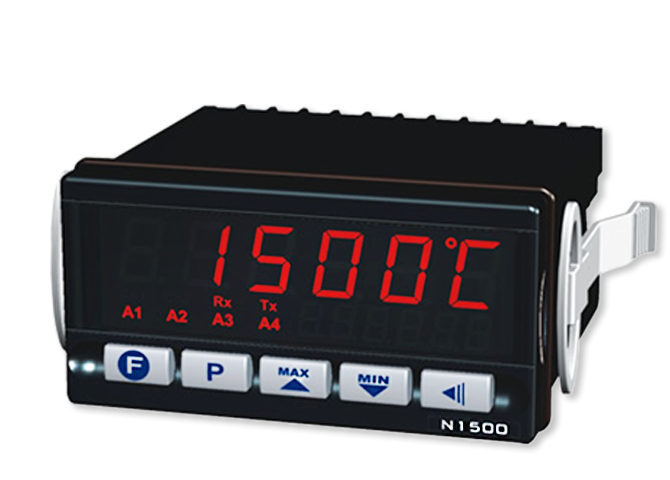

product image
General Compatible devices Additional accessories Contact form

Characteristic

  • temperature indicator
  • 4 digit LED display
  • sensor offset
  • front panel: IP65



Specifications

  • universal input: TC/RTD/4-20mA
  • output: 4xrelay, 4-20mA
  • power supply: 230V AC, 24V DC / AC ±10%
  • dimensions: 48 × 96 × 92; cut-out45 × 93 mm
  • additional features: 4 alarm outputs  – relay 4x3A/240V AC
                             current output 4÷20mA
                                 transmitter supply 24V DC – max. 25mA
                                 interface RS-485
