Description

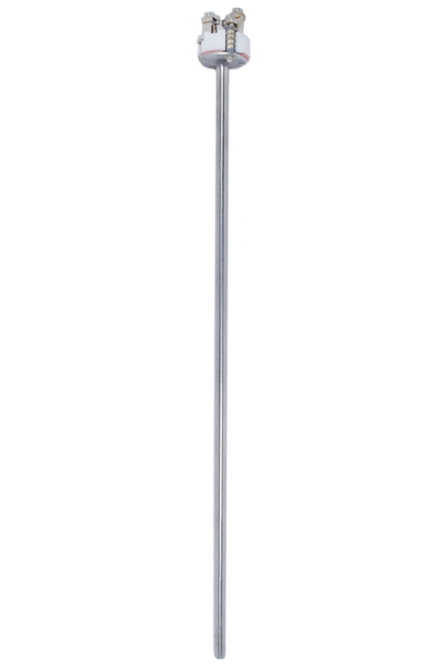

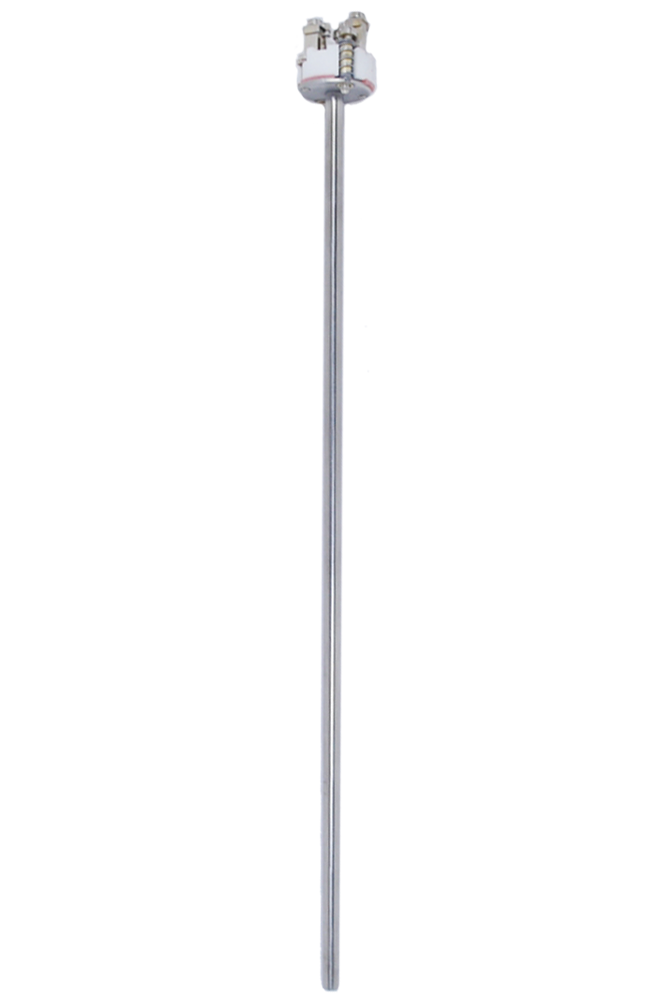

Measuring insert in the pipe, rigid sheath is used as a replaceable element of temperature sensors. Insert design enables its installation in the connection head and pressing insert tip to the bottom of the sensor thermowell.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Cooperating devices Additional accessories Contact form

Temperatura range

  • -200÷550ºC      RTD
  • -40÷600ºC        TC



Specification

  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • sheath material: acid-resistant steel 1.4541

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Some applications require the use of additional accessories suitable for their individual requirements.
