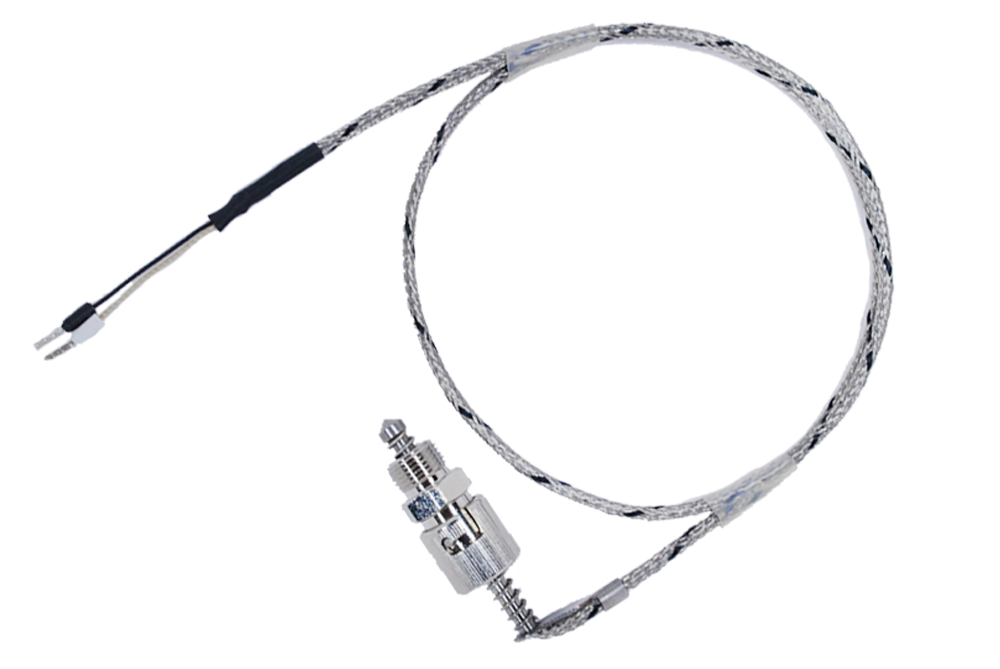

Sensor suitable for temperature measurement of enclosures, movable parts and injection moulds.


Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Cooperating devices Cables Additional accessories Contact form

Temperature range

  • -50÷400ºC        Pt100
  • -40÷400ºC        K, J



  • flat (P) or tapered (S) tip
  • quick disconnect SZ with thread (standard – M12x1)
  • thread K (standard – M12x1)
  • material: stainless steel 1.4541

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Normally, sensor is made with fiberglass insulated lead wire and metallic braid.

There is a possibility to use lead wire of different type.

Some applications require the use of additional accessories suitable for their individual requirements.

Contact form

Required field
Required field
Required field
Required field

Generate the code by selecting the parameters below


Sensing element

Tip type

Thermowel lenght

Thermowel diameter

Sensor version

Thread dimension

RTD type

Measuring junction type

RTD class

RTD connection

Lead wire insulation

Lead wire length

clear my selections generate code
