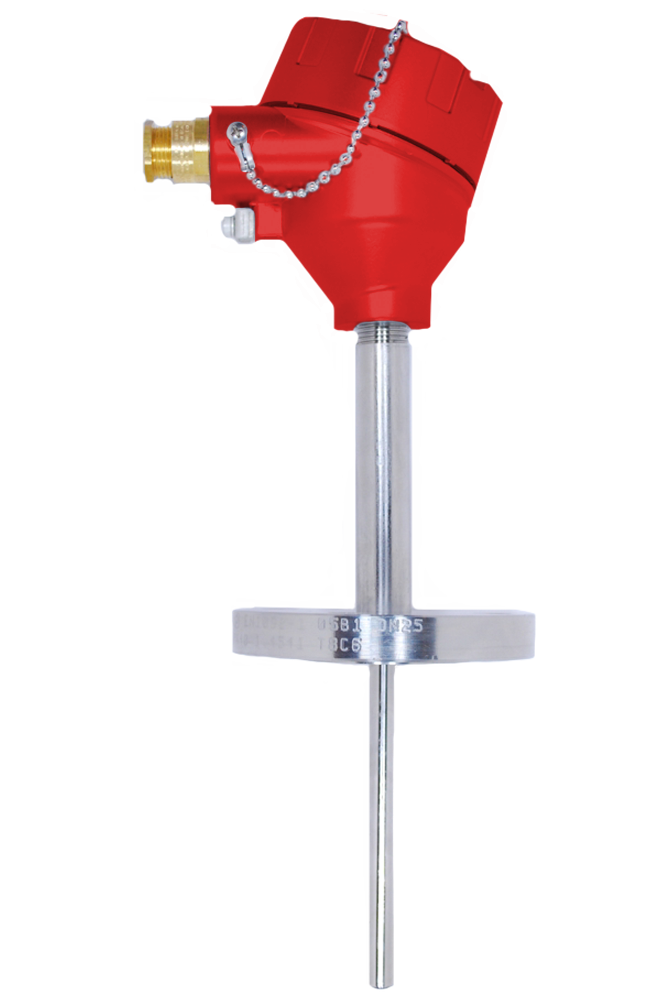

Temperature sensor suitable for measurement of liquid and gaseous media. It has a replaceable measuring insert adequate for various industrial applications. Replacement of the measuring insert does not cause the technological installation damage. Spring-loaded insert ensures an excellent connection with the bottom of the sensor thermowell. Temperature sensor has ATEX approval for application in hazardous area: I M2 Ex d I Mb (with connection head NS) II 2G Ex d IIC T6 Gb II 2D Ex t IIIC T85ºC Db IP66


Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Connection heads Compatible devices Additional accessories Contact form

Temperatura range

  • -200÷550ºC      RTD
  • -40÷550ºC        TC



  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • aluminium:
    XD-AD (AS1 – one cable gland, AS2 – two cable glands)
  • aluminium, cover with window:
    XD-ADwin (AS3 – one cable gland, AS4 – two cable glands)
  • stainless steel:
    XD-SD (NS1 – one cable gland, NS2 – two cable glands)
  • sheath material: acid-resistant steel 1.4541, flange PN16, DN20. DN25
  • cable gland: ATEX II 2 GD; ATEX I M2; IP 66÷68
    cable diameter: 3÷14,3 mm (standard 6,1÷11,7)
  • Exd acc. to ATEX




Connection heads

Connection head type XE-DANA in standard.
Possibility to mount the connection head of a different type.


For details see: "connection heads"

Cooperating devices

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Temperature Indicators Controllers Recorders

For details see: indicators,controllers, “data loggers”

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Transmitters Welding adapters Displays

Plugs and Sockets Compensation cables Protection Tubes

For details see: transmitters, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
