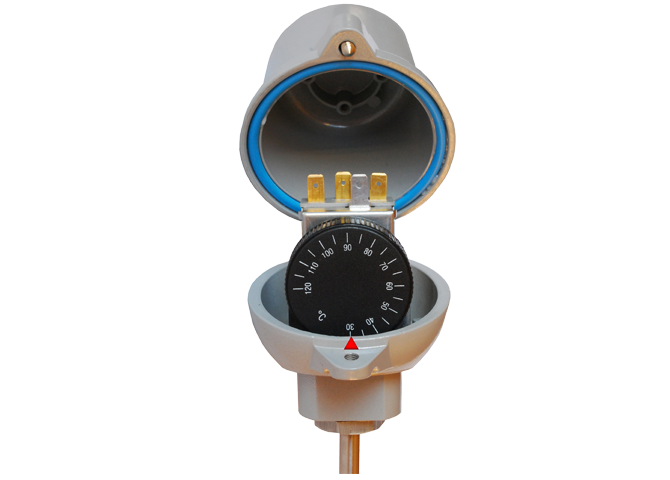

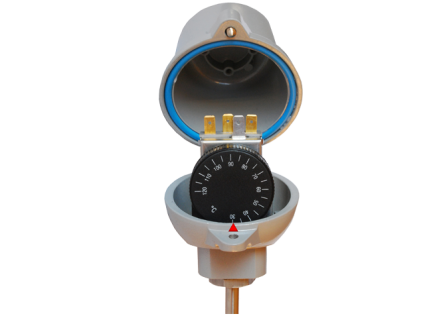

TMS thermostats are used in automation as a simple process controllers or direct action safety systems. Stainless steel thermowell and aluminum connection head, provide a durable and reliable operation under difficult conditions. Thermostat switch contacts allow for switching on loads up to 16 A.


Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Contact form
  • universal thermostat with aluminum connection head and
    stainless steel thermowell
  • connection head: DAAW1
  • contacts load NO (NC): 16(5) A 250 V, 10(1) A 400 V
  • connectors: flat plug 6,3x0,8 mm



  • diameter [mm]: ø8
  • material: stainless steel 1.4541
  • min. immersion length [mm]: 150
