Description

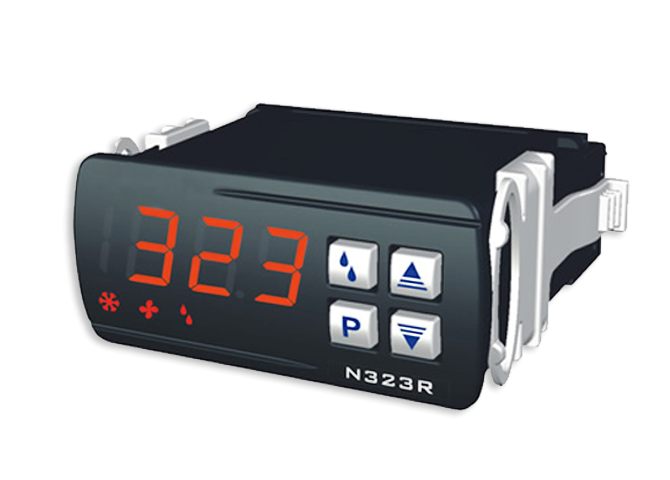

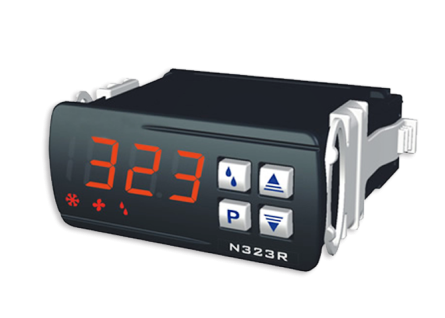

The simplest controller ON / OFF control of three relay outputs, but with the common potential. Dedicated sensors type Pt100 or Pt 1000 or J, K, T. NTC version supplied in the price along with the NTC sensor. Power for selection of 230 V or 24 V Pt100 version 2 or 3 wire with compensation. Nice red numbers display in a black enclosure with protection against reflections. For panel mounting. Possible expansion of the communication module RS-485.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Compatible devices Additional accessories Contact form

Characteristic

  • temperature controller of the thermostat
  • 3,5 digit LED display
  • sensor offset adjustment
  • hysteresis adjustment
  • defrost function (N323R)
  • front panel: IP65



Specification

  • dedicated input: TC/RTD/NTC
  • output: 3x relay, SSR
  • power supply: 230V AC, 24V DC / AC ±10%
  • dimensions: 75 × 33 × 75; cut-out 70 × 29 mm
  • additgional features: RS485 interface
