Description

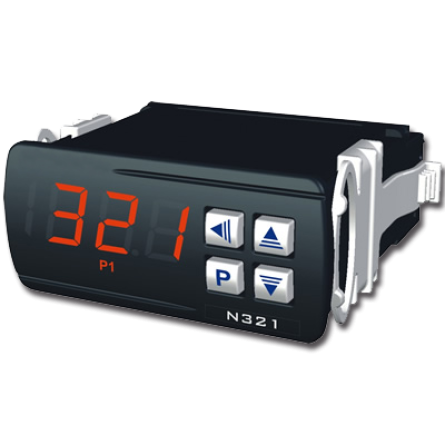

The simplest controller ON / OFF with one control output. To select a relay or SSR output for connection to 5 V single-phase solid state relays from 25 to 125 A. A dedicated sensor type PT100 or PT1000 or J, K, T. NTC version supplied in the price along with the NTC sensor. Power for selection of 230 V or 24 V Pt100 version 2 or 3 wire with compensation. Nice red numbers display in a black enclosure with protection against reflections. For zabudowypanelowej. Possible expansion of the communication module RS-485.

Files

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
General Compatible devices Additional accessories Contact form

Characteristic

  • temperature controller of the thermostat
  • 3,5 digit LED display
  • sensor offset adjustment
  • hysteresis adjustment
  • defrost function (N321R)
  • front panel: IP65



Specification

  • dedicated input: TC/RTD/NTC
  • output: relay, SSR
  • power supply: 230V AC, 24V DC / AC ±10%
  • dimensions: 75 × 33 × 75; cut-out 70 × 29 mm
  • additgional features: RS485 interface

Compatibility device

Thermostats can work with devices such as heaters and temperature sensors, monitoring the temperature of the first to know.

Temperature sensors Heating Elements


For details see: "head sensors", "cable sensors", "sensors for air-conditioning", "mineral insulated sensors", "special sensors", "Ex sensors" and "heatings elements"

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Relays Radiators
