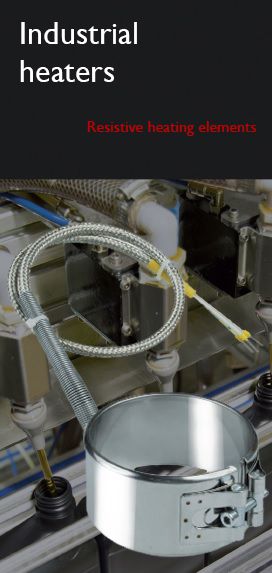

Industrial heaters

Industrial heaters

- reprinted from monthly magazine PAR 5/2013

The assortment variety of companies in industrial automation is one of the main features for its high market position. Limatherm Sensor is a leading manufacturer of automation; specializes in particular in the issues of temperature measurements.

---

The experience gained during several years of operation allows the company to create market; making modernization of production/ product in accordance with the development of technical and structural requirements set by customers.
The measure of the company's development is the introduction to the offer a new range of  assortment- providing contractors comprehensive service, which consists of: professional advice, selection of equipment and to provide products that meet all the requirements of the application. In recent years, the offer of Limatherm Sensor company enriched with industrial heating elements. Heaters are widely used in the plastics, rubber, food and wherever manufacturing processes require a higher temperature. Heating elements offered by Limatherm Sensor possesses the highest quality:
 • the materials used ( Kanthal )
 • performance (according to current standards ) and reliability.

The company also undertakes the supply to match the individual needs of the client. Assortment features:
band heaters
  • internal diameters from 18 mm to 1000 mm
• thickness from 3 mm to 32 mm
• max. temperature: 450 ° C
• power supply: 220 V to 480 V;

Cartridge heaters
• tolerated diameters from 4 mm to 70 mm
• length: 25 mm to 2500 mm
• max. temperature: 500 ° C
• shape: straight
• supply voltage: 12 V to 480 V;

Tubular heating elements
• tolerated diameter from 6 mm to 32 mm
• length: up to 4000 mm
• max temperature: 600 ° C
• shape: straight or contoured
• supply voltage: 12 V to 480 V

An important role in the proper selection of the parameters of the heating element plays a purpose and working conditions. With a power boiler to its dimensions (ie surface load ) has a big impact on the work the heater. For the proper selection, it is necessary to provide the following parameters:
• size, voltage and power,
• destination and type of heated medium,
• required temperature,
• electrical terminal types,
• temperature control method
• mounting type

Entering these parameters allows for precise heaters selection, ensuring a long and reliable operation of heating element in the application.
