Wirewound resistors
Thin-film resistors
Contact form

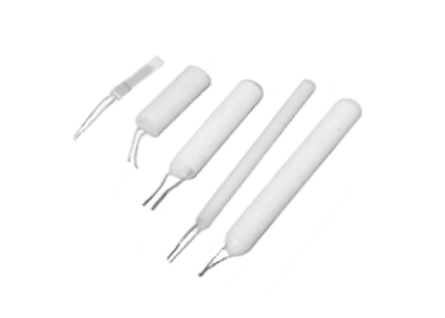

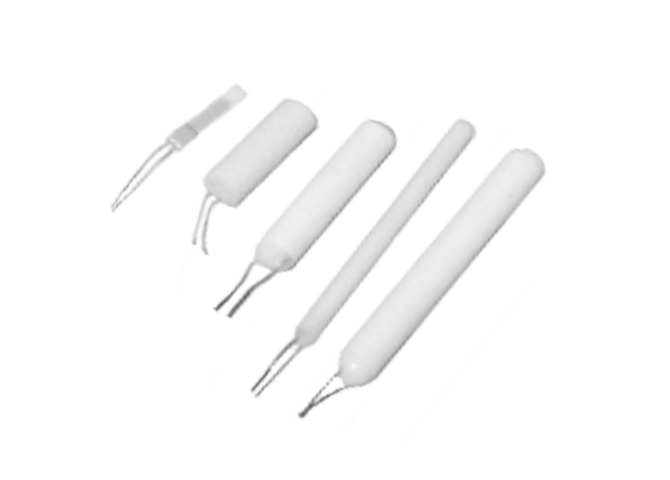

CERAMIC-WIRE RESISTOR
| Type | Dimensions |
Nominal resistance |
Measuring range | Class |
Max. measuring current |
Response time in water V=0,4 m/s |
|
| T0,5 | T0,9 | ||||||
| OP1515 |
D=1,5 mm L=15 mm |
Pt100 - 100Ω |
-200÷600C° -50÷450C° |
B A |
5mA 5mA |
0,20 0,20 |
0,60 0,60 |
| OP2630 |
D=2,6 mm L=30 mm |
Pt100 - 100Ω |
-200÷600C° -50÷450C° |
B A |
5mA 5mA |
0,25 0,25 |
0,70 0,70 |
| 2OP2630 |
D=2,6 mm L=30 mm |
2xPt100 - 100Ω |
-200÷600C° -50÷450C |
B A |
5mA 5mA |
0,25 0,25 |
0,70 0,70 |
| OP4530 |
D=4,5 mm L=30 mm |
Pt100 - 100Ω |
-200÷600C° -50÷450C |
B A |
5mA 5mA |
0,35 0,35 |
1,40 1,40 |
| 2OP4530 |
D=4,5 mm L=30 mm |
2xPt100 - 100Ω |
-200÷600C° -50÷450C |
B A |
5mA 5mA |
0,35 0,35 |
1,40 1,40 |
THIN-FILM RESISTOR
| Type | Dimensions |
Nominal resistance |
Measuring range | Class |
Max. measuring current |
Response time in water V=0,4 m/s |
|
| T0,5 | T0,9 | ||||||
| M222 | 2,1x2,3x0,9 mm | Pt100 - 100Ω |
-70÷500C° -50÷300C° 0÷150C° |
B A 1/3B |
1mA | 0,05 | 0,15 |
| M222 | 2,1x2,3x0,9 mm | Pt100 - 100Ω |
-70÷500C° -50÷300C° |
B A |
0,3mA | 0,05 | 0,15 |
| M422 | 2,1x3,9x0,9 mm | 2xPt500 - 500Ω |
-70÷500C° -50÷300C° |
B A |
0,7mA | 0,07 | 0,20 |
