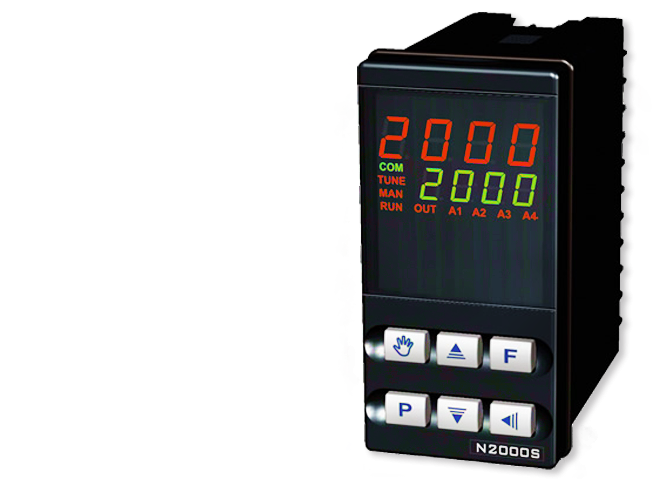

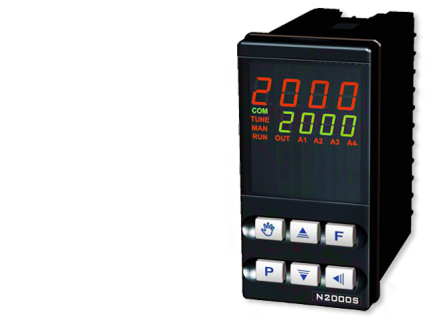

Limatherm Sensor controller suitable for tree-way control (e.g. of valves). RS-485 communication as an option. It has digital input, additional 24V power supply and outside control of setting. It has universal input suitable for most popular thermocouple and Pt100 sensors and analogue inputs, including 4÷20mA. Low or standard 230V power supply can be selected. 4 relay outputs programmable as alarm or control, 5th universal output programmable as SSR 14V (for control of three-phase semiconductor relays  or 4÷20mA (control or retransmission)), digital input/output.


Contact with a consultant

Telephone: 18 330 10 22

Fax: 18 330 10 04


Do you have a question?
General Compatible devices Additional accessories Contact form


  • programmable temperature controller
  • floating (eg valves)
  • 4 digit dual LED display
  • PID control; ON/OFF control
  • auto-tuning
  • sensor offset
  • front panel: IP65



  • universal input: TC/RTD/4-20mA, digital
  • additional supply: 24V DC
  • output: 4xrelay
  • fifth-purpose programmable output: 4-20mA, SSR 14V
  • power supply: 230V AC, 24V DC / AC ±10%
  • dimensions: 48 × 96 × 92; otwór 45,5 × 92,5 mm
  • additional features: interface RS-485

Compatibility device

Thermostats can work with devices such as heaters and temperature sensors, monitoring the temperature of the first to know.

Temperature sensors Heating Elements

For details see: "head sensors", "cable sensors", "sensors for air-conditioning", "mineral insulated sensors", "special sensors", "Ex sensors" and "heatings elements"

Additional accessories

Some applications require the use of additional accessories suitable for their individual requirements.

Relays Radiators
